2007-21 Toyota Tundra 0-3" UCA lift kit, Stage 5, VS 2.5 Reservoir shocks

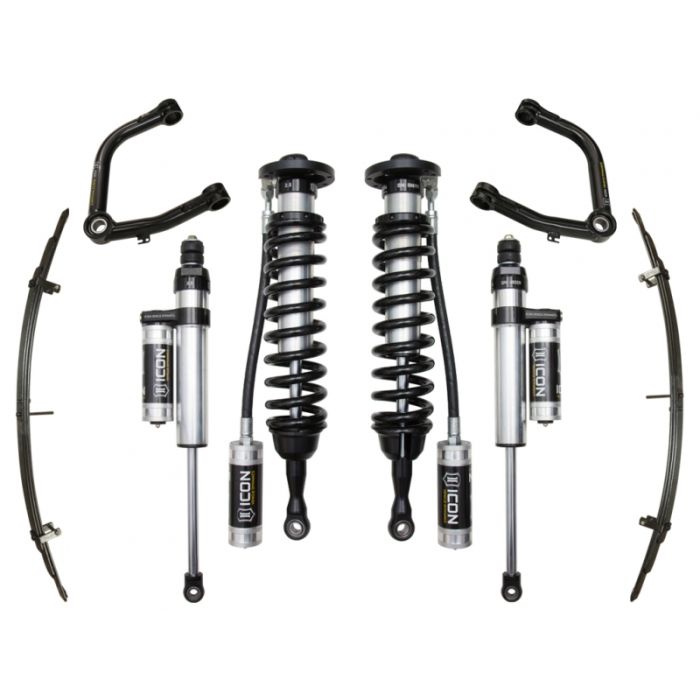

If you’re a serious driver and looking for top quality components and enhanced performance, ICON Vehicle Dynamics has a set of adjustable coilovers, rear expansion leaf pack and VS 2.5 Reservoir shocks to fill the bill. The ICON primary focus is outstanding vehicle control and ride quality with increased wheel travel and damping ability. The Stage 5 lift kit features vehicle specific 2.5” coilover shocks with remote reservoir to provide exceptional cooling properties. The coilovers are ride height adjustable from 0” to 3” allowing for a larger and more aggressive tire and wheel combination. Replacement tubular upper control arms are included for improved ride quality. The rear expansion leaf pack replaces all but the main leaf of your factory spring pack. This expansion pack provides 1.5" of lift and is designed to increase the performance of your Tundra. A new u-bolt kit is also included.

The vehicle specific (VS) 2.5 reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. The ICON 2.5 reservoir shocks operate over a wide temperature range. They feature a one-piece digressive piston design, 7/8” diameter chrome plated shock shaft, polyurethane bushings, forged steel mounting stems, PTFE lined spherical bearings, 6061 aircraft grade aluminum CNC machined components, CAD plated, and a precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance.

• Increased wheel travel and ride quality over stock with no change in towing capacity


• Vehicle specific tuned front and rear V2.5 Reservoir shocks for superior shock damping and control


• Tubular upper control arms


• Adjustable coilovers from 0-3" of lift height


• 6061 Aircraft grade aluminum CNC machined components


• Corrosion resistant CAD plated coilover shock body with 7/8 shaft


• High strength alloy CNC machined lower bar pin


• 1.5" Rear Expansion pack for better ride quality


• U-bolts, washer, nuts


• 100% Bolt-on system - no drilling, cutting, or welding necessary for install


• Made in the USA

View coilover installation instructions
