2005-22 2WD 6-Lug Toyota Tacoma 4" spindles

$671.99
Product No
MAX706840
FREE SHIPPING Lower 48 States

Quick Overview

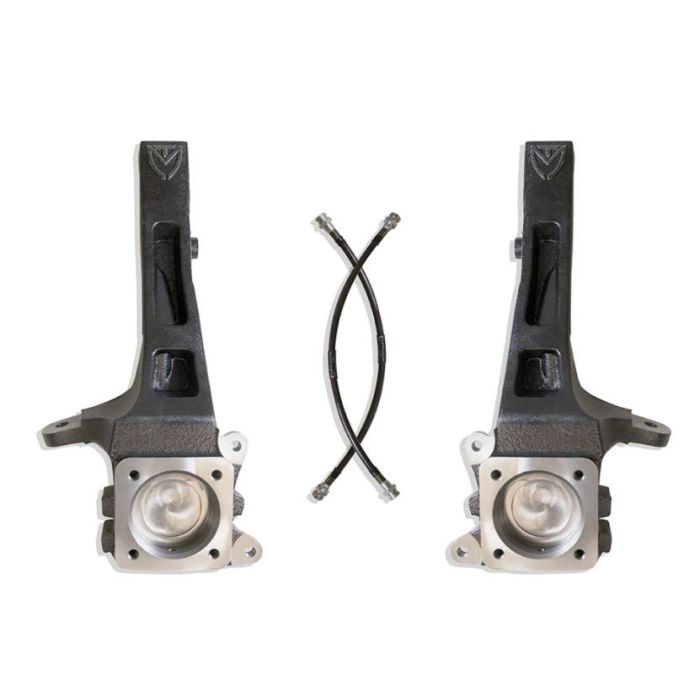

Let the MaxTrac 4" spindles replace the stock steering knuckles on your 6-Lug Toyota Tacoma. Constructed out of ductile iron from a cast mold, the MaxTrac lift spindles are a beefy replacement for your factory parts.

Installation is a bolt on process and will maintain the stock steering geometry and ride quality. You can continue using the OEM struts / coilovers. Also included are DOT approved extended stainless steel brake lines.

Should you desire additional height, these spindles can be combined with strut spacers, aftermarket coilovers of new control arms that utilize the stock mounting components. Eliminate the factory rake and achieve greater ground clearance with the addition of larger tires and wheels that can now be installed. Spindles are sold in pairs. MaxTrac products come with a Limited Lifetime Warranty.



  • 17" minimum wheel w/ 4.75" max backspacing or less

  • +0.75" track width increase per side

  • Will clear up to a 33" tire with the correct wheel & tire combination

  • Prior to installation—measuring is required when selecting a wheel & tire combination

  • Trimming may be required for optimal fender well clearance


View installation instructions

    • Make: Toyota
    • Model: Tacoma
    • Vehicle: 2005-22 2WD 6-Lug Tacoma 4" spindles
    • Tire Size: 33" tires on 17" minimum wheel with 4.75" or less BS
    • Initialize: 1

MaxTrac lift spindles fit the following models:
2WD 6-Lug Toyota Tacoma
2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
