2017-22 4WD Ford F250, F350 Diesel Super Duty 8.5" Class II 4-Link lift system, rear leaf springs
Important Notes
Fits diesel models
Longer shocks are required and sold separately
Choose from Hydro, Nitro, Black Max or Monotube shocks below
Pair shocks with a matching steering stabilizer
Quick Overview
For optimal performance, upgrade to Skyjacker's 8.5" Class II 4 Link lift kit for your Ford F250 or F350. All necessary components are included to let you install those 38" tires for a level and aggressive stance. The variable rate coil springs were designed so the rate is softer on the highway using the first 3.5" of travel. The spring rate will then increase as the coils compress past the first 3.5" of travel for enhanced offroad performance.

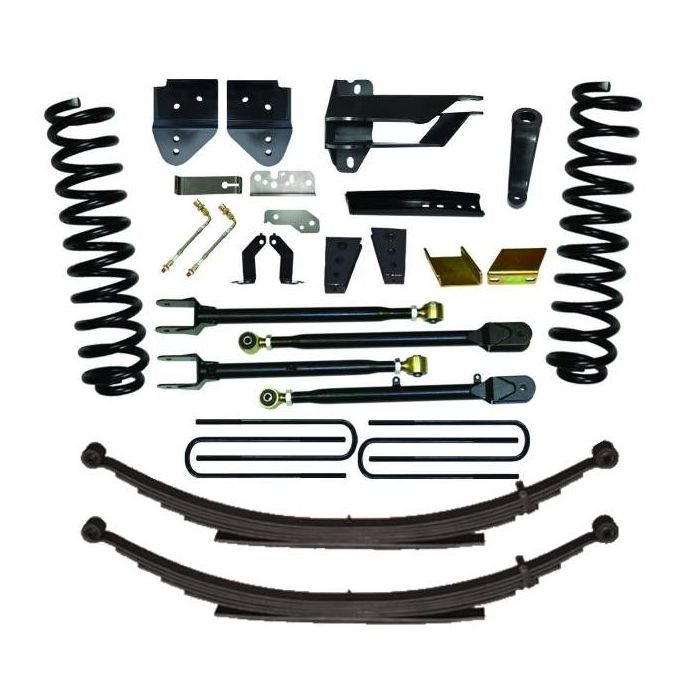

Kit Components
Front variable rate coil springs
Adjustable 4-Link arms
Pitman arm
Track bar relocation bracket
Radius arm relocation brackets
Steering stabilizer bracket
Front sway bar lowering brackets
Front bump stop spacers
Front brake line extensions
Softride rear leaf springs
Kit Features
Limited Lifetime Warranty
Made in the USA
Improved ride and handling
More suspension travel
Required and/or Related Items
-
$175.11
-
$366.68
-
$242.68
-
$237.64
-
$200.08
-
$804.07
-
$175.11
- Make: Ford
- Model: F250
- Vehicle: 2017-22 F250 Diesel 8.5" Class II 4-Link lift lift system, rear leaf springs
- Drive: 4WD
- Tire Size: 38x12.50 on 17-20x9 wheels, 5" BS
- Upsell: F17685DS SK, 7254 SK, 8254 SK, 9254 SK, SK-4-HYDRO, SK-4-NITRO, SK-4-MONO, SK-4-BLACKMAX
- Initialize: 1
Skyjacker lift kit fits following models:
2017 F250 Super Duty
2018 F250 Super Duty
2019 F250 Super Duty
2020 F250 Super Duty
2021 F250 Super Duty
2022 F250 Super Duty
2017 F350 Super Duty
2018 F350 Super Duty
2019 F350 Super Duty
2020 F350 Super Duty
2021 F350 Super Duty
2022 F350 Super Duty
